FEATURES:

6NTLW2000 Neodymium - LF

• Dual gap ultra linear motor

• 93 dB SPL 1W-1m sensitivity

• 51 mm (2 in) voice coil

• Optimized thermal conductivity

ND3T- HF

• Edge-wound 75mm (3 in) CCAW

• 112 dB SPL 1W-1m sensitivity

• 1.4 inch exit throat

• Recommended Crossover 1.2 KHz

• Next-gen 4-slot metal alloy phase plug

• Titanium diaphragm assembly

The CA6 ND3 is a high-performance passive / bi-amp double 6” line array system engineered for professional live sound applications where clarity, control, and power are essential. Powered by GM Audio and loaded with original 18Sound Italy components, this compact yet powerful enclosure delivers 1420W program power with exceptional precision and reliability.

​

At the core of the CA6 ND3 are dual 6NTLW2000 neodymium low-frequency drivers. These advanced LF transducers are designed with a dual-gap ultra-linear motor structure, ensuring improved magnetic stability, reduced distortion, and enhanced dynamic response. With a 51 mm (2-inch) voice coil and optimized thermal conductivity, the system maintains consistent performance even during high-output, long-duration events. The result is tight, controlled bass and punchy mid-low frequencies that project clearly across medium to large venues.

​

Handling the high frequencies is the ND3T neodymium compression driver, delivering outstanding clarity and articulation. Featuring an edge-wound 75 mm (3-inch) CCAW voice coil and a titanium diaphragm assembly, this HF driver provides smooth, detailed highs with excellent transient response. With a sensitivity rating of 112 dB SPL (1W/1m), it ensures high efficiency and impressive output while maintaining low distortion at elevated sound pressure levels.

​

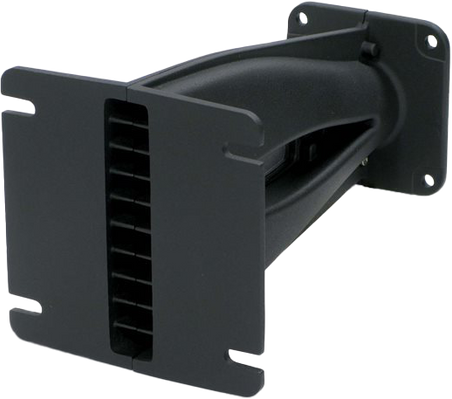

The system incorporates the XG14 HF horn, designed specifically for line array applications. With a 1.4-inch waveguide and optimized throat geometry, the horn reduces air distortion and enhances vocal intelligibility. The 10-degree vertical coverage angle allows for precise array configuration, ensuring even sound distribution and controlled vertical dispersion. This design makes the CA6 ND3 highly effective for stacked or flown line array setups, delivering uniform coverage across audiences.

​

Built for heavy-duty performance, the CA6 ND3 combines compact dimensions with rugged construction, making it ideal for touring productions, concerts, corporate events, houses of worship, and outdoor gatherings. Its neodymium motor structures reduce overall weight while maintaining powerful magnetic performance, offering a balance between portability and high output capability.

​

In bi-amp mode, the system allows independent control of LF and HF sections, enabling sound engineers to fine-tune crossover points and optimize performance based on venue acoustics. This flexibility ensures greater system control, improved headroom, and enhanced clarity across the frequency spectrum.

​

The CA6 ND3 stands out as a professional-grade line array solution designed for high SPL performance, reduced distortion, and reliable long-term operation. Delivering a powerful combination of advanced driver technology, controlled coverage, and Italian-engineered components, it provides clean, articulate sound that meets the demands of modern live audio environments. Compact in size but massive in performance, the CA6 ND3 is built to dominate stages with precision and authority.
