The CA8 AMT is a high-performance passive / bi-amp double 8” line array system engineered for professional sound reinforcement where power, clarity, and precision coverage are essential. Powered by GM Audio and equipped with original 18Sound Italy components, this system delivers an impressive 1520W program power, making it ideal for concerts, touring productions, corporate events, houses of worship, and large-scale outdoor gatherings.

​

At the low-frequency section, the CA8 AMT features dual 8NTLW2000 neodymium drivers. These advanced LF transducers are built with a Tetracoil ultra-linear motor structure, ensuring exceptional magnetic balance and high output with reduced distortion. With a 51 mm (2-inch) CCAW voice coil and optimized thermal conductivity, the drivers maintain stable performance even under prolonged high-SPL operation. The result is tight, punchy bass and strong mid-bass response that projects with authority across medium to large venues.

​

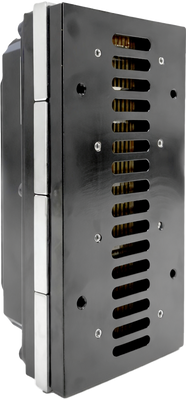

The high-frequency section is powered by the AMT200P driver, delivering fast transient response and extremely low harmonic distortion. Designed with a planar exit structure and high-sensitivity performance of 103.5 dB SPL (1W/1m), this HF unit provides smooth, detailed highs with excellent articulation. The precision diaphragm design ensures clarity in vocals and instruments, maintaining definition even at elevated sound pressure levels.

​

Sound dispersion is controlled by the XMT200 horn, offering uniform on-axis and off-axis frequency response. With 90° horizontal and 20° vertical constant coverage, the horn ensures wide audience coverage while maintaining controlled vertical dispersion for array configurations. The horn geometry is optimized to reduce distortion and maintain clarity across the listening area, making it highly effective in stacked or flown line array setups.

​

The CA8 AMT supports both passive and bi-amp configurations, providing flexibility for system designers and audio engineers. In bi-amp mode, independent control over LF and HF sections allows precise crossover tuning and enhanced system optimization based on venue acoustics. This adaptability ensures improved headroom, cleaner output, and greater overall system efficiency.

​

Constructed for heavy-duty performance, the enclosure combines rugged durability with a professional finish suitable for touring and fixed installations. The use of neodymium motor structures reduces weight without sacrificing output capability, making the system easier to transport and rig while maintaining high performance standards.

​

The CA8 AMT stands out as a powerful and reliable line array solution built for demanding professional applications. With advanced driver technology, controlled dispersion, high SPL capability, and Italian-engineered components, it delivers impactful low frequencies, articulate mids, and crystal-clear highs. Compact yet commanding, the CA8 AMT is designed to dominate stages with precision, efficiency, and uncompromising sound quality.
